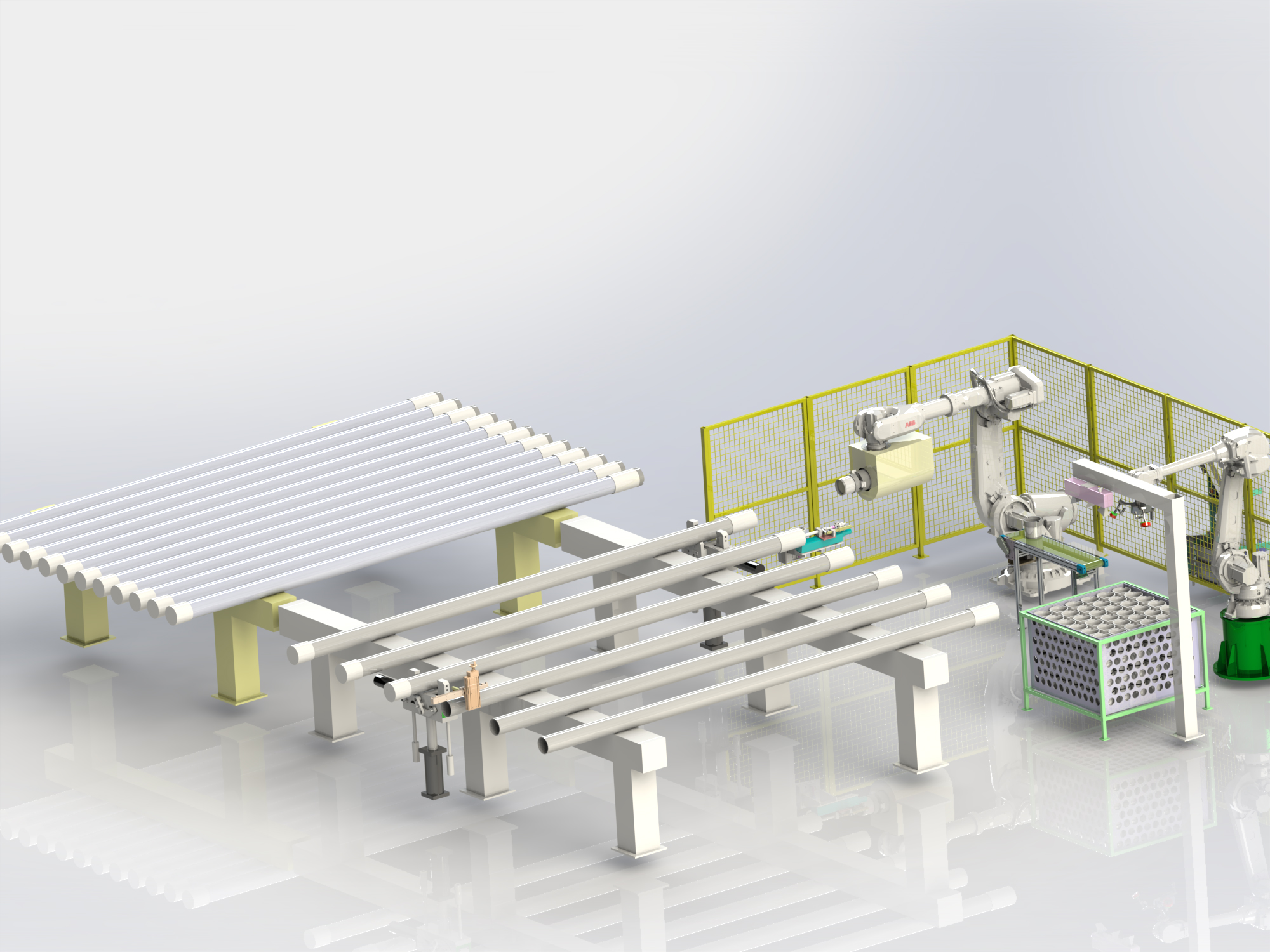

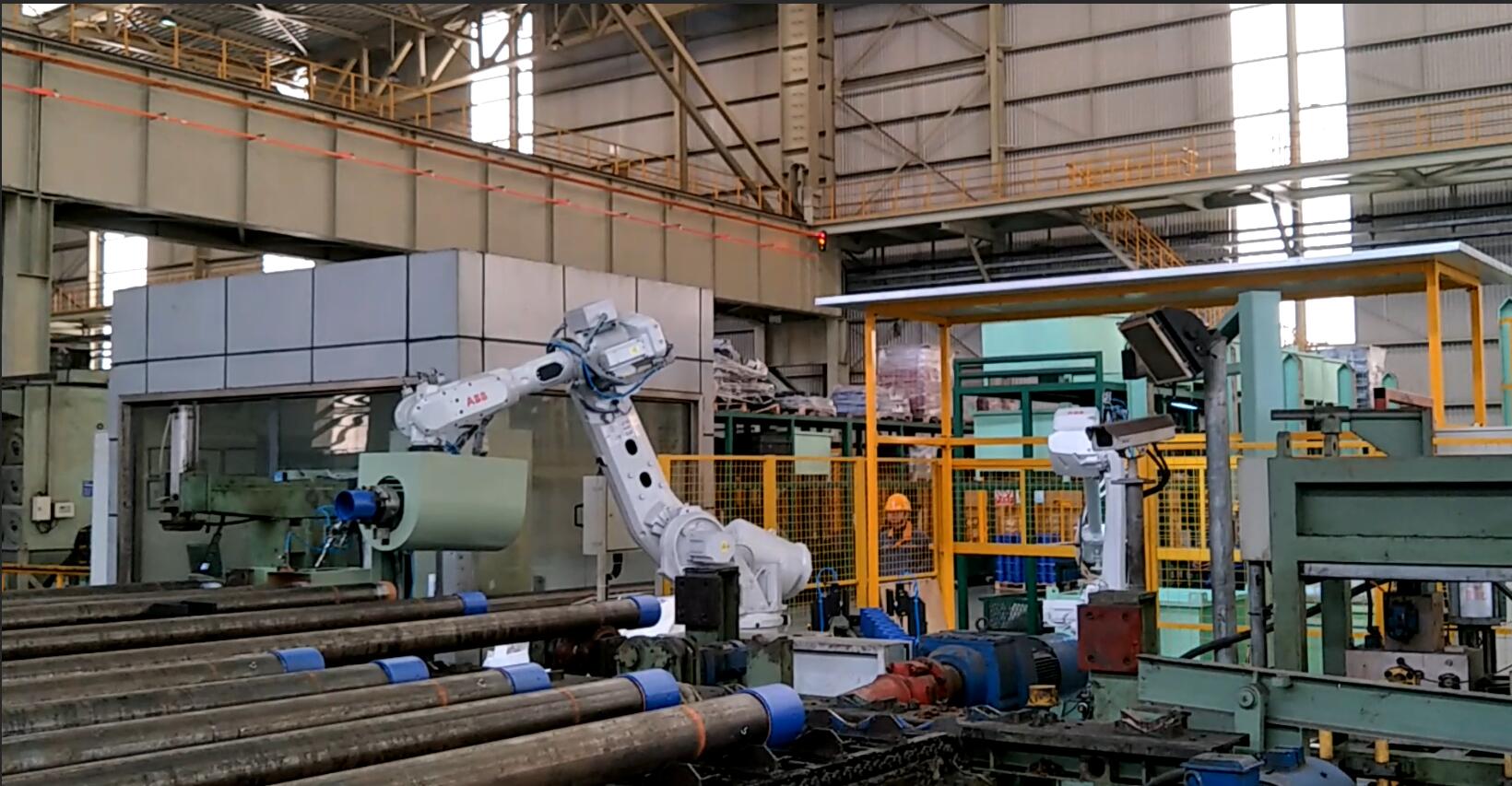

This equipment utilizes a six-axis robot and a floating device to perform the protection ring screwing work at the externally threaded end of the steel pipe and the internally threaded end of the coupling end, and at the same time, the coupling pre-screw function is completed, thereby completing the threaded portion and the purpose of protection. The system protection ring and coupling automatic feeding and automatic screwing are fully automatic and unmanned.
Loading System:Sorting robot cooperate with material storage conveyor belt,Adjustable posture device as well as 3D haploscope,Complete the protection ring (coupling) accurate, rapid posture adjustment, loading work.
Screw-on system:Screw Robot cooperate with clamping device,Floating adapter and sensor Finish high quality flexible connection and feedback.
Control system:PLC control cooperates with upper computer unitive monitoring to realize real-time operation and monitoring of equipment system and data backup and storage.
